| Code | Product Name | Dimensionsmm | Weightkg | Tray Capacity |
| EMP.MED.TRY.30 | MEAL DISTRIBUTION TROLLEY - FIXED | 854x1043,5x1578 | 210 | 30 |
| EMP.MED.TRY.30-TR | MEAL DISTRINUTION TROLLEY - REMOVABLE | 854x1043,5x1578 | 185 | 30 |
| EMP.MED.5633 | EXT Tray | 565x332,5 | | |
| EMP.MED.2833 | EXT 1/2 Breakfast Tray | 282,5x332,5 | | |
| EMP.MED.5337 | EURONORM Tray | 530x370 | | |
| EMP.MED.2637 | EURONORM 1/2 Breakfast Tray | 265x370 | | |
| EMP.MED.TK | Tray Transportation Kit | 755x614,1x126,2 | 30 | |
| EMP.MED.TKA | Tray Transportation Kit Trolley | 783x982,9x1305,7 | 50 | |
| EMP.MED.SOFT | MED-SOFT Software | | | |
Ürün Bilgileri

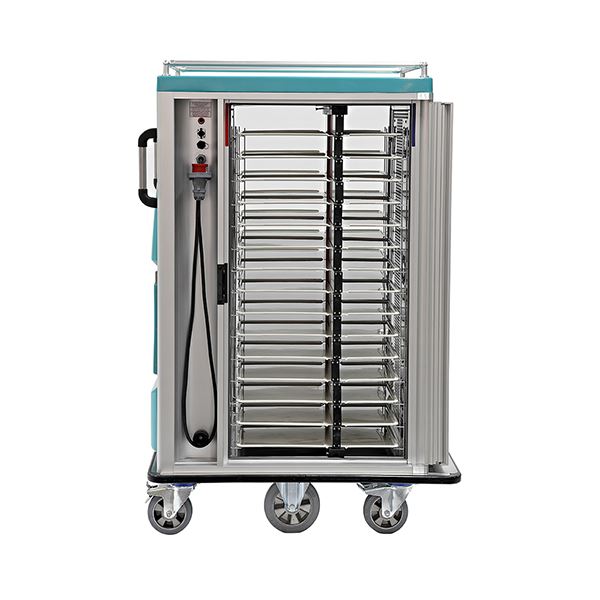

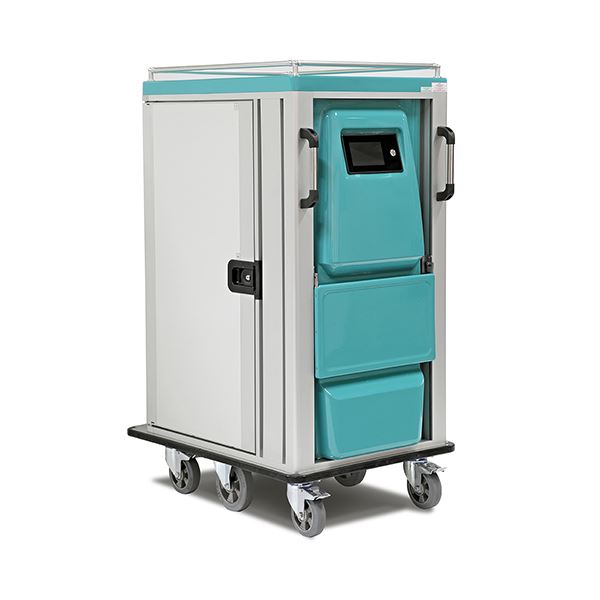

Thanks to the perimetric aluminum case, it is easy to replace outer parts and also lighter in movement. Compared to equivalent models, it occupies less space and is more light in weight. Special design makes it easier to move in smaller area.
The push handle is specially designed to protect the user’s hands from possible damages. Special door closing system secures the trolley door can be opened inside due to applicable safety legislation.
Trolley has IPX 5 protection level. Ergonomic and user-friendly colored LCD display and advanced software which can hold up 20 programs in the memory of the thermal program.
With custom manufacturing technology and materials used, all parts of the product can be easily changed. In this way maintenance of the trolley is extremely easy and cost-effective, and this feature extends the life of the trolley and increase sustainability.
The flexible and durable design and the lower protection bumpers allows the trolley to be used even in heavy-duty environments comfortably and safely.
Thanks to wide opening doors for easy cleaning as also the rounded edges in the cold and hot compartments. Special developed accesories and options helps MED-TRAY to be used in different areas not only the hospitals. (clinics, rest home, prisons, mind Hospitals, etc.). In the “COOK&SERVE” models, the default operation is one compartment is cold and the other compartment is hot.
In the operating process, cold compartment temperature is + 3 ° C (which is adjustable), at the same time the hot compartment is +120 ° C (which is adjustable). Inner temperatures are kept at the right values until the food is served. And these values do not change till the meal served to the patient bed. In this respect, HACCP rules and services are provided. Patient food security is guaranteed.
In the “COOK&SERVE” system, the meals are portioned in the main kitchen. The trays are inserted into the trolleys and sent to the patient floors.
Meals which are placed in the trolleys and sent for serving will have the required temperature values. Meals are protected hygienically and appropriately before they are served to the patients. Warm food will produce bacteria when it falls below a certain level of temperature.
In addition, keeping the foods in the cold section at the appropriate temperature is provided.
The top and side panels are antistatic, strong and resistant to impacts, thermoplastic made. The internal partition wall and the rails which the trays will be inserted can be easily removed and cleaned.
The condensate bowl located under the cooling compartment which can be easily removed and cleaned.
Control Unit Technical Features
- User friendly 7” color touch screen
- IP-65 protected USB port
- IP-65 protected ethernet port
- Wireless WI-FI communication system
- Internal battery helps to collect data when the trolley is not plugged.
- Data storage for one year in the memory.
- Data transfer from the USB memory stick, cable connection or wireless connection to the software MED-SOFT in the main computer.
- The temperature graphic of the cold and hot compartment can be seen on the display.
- Battery and date information display on the screen.
- Adress and the department information of the trolley display on the screen.
- Hot compartment temperature can be adjustable between +40 and +130 oC.
- Cold compartment temperature can be adjustable between -4 and +8 oC.
- 20 cycle programmes can be stored in the memory.
- Manuel operating mode : Starting the heat cycles in one step.
- Step operating mode : Starting the heat cycles with different phases with different temperatures. For each cycle maximum 4 steps can be added
Extra Options
Option 1- Empero MED-SOFT Software Features
Empero MED-SOFT software is used for communicating the trolleys working in the facility. The software called as “Trolley Tracking and Managing” which also manages the trolleys from main computer.
- Provides to make the network settings more than one trolley. This operation will be done by a central computer which will help users to gain time by not programming the trolleys one by one.
- Provides the communicate all of the trolleys at the same time and each connection time the history data (for one year) can be extracted from the memory.
- The data graphics can be provided on the computer between two time zones.
- MED-SOFT helps to connect the trolleys on the network system with the help of a computer.
- Operation graphics can be observed on the software which shows cycles, stops, plug-in, plug-off and on board.
- Trolleys can be started, mode can be selected, temperature can be controlled, time can be controlled and can be turned off through the wireless connection with the help of WIFI.
- Users can be authorized by password.
- Store the data on the USB which exported from the trolley.
Option 2- Tray Transportation Kit
Thanks to this KIT, trays can be easily placed in the trolley and ready to go. The used trays can be easily collected with this KIT. The kit is lightweight and can be easily transported on special handling. The partition wall which divides hot and cold sections is valid on this kit and protects food safety. It is also manufactured in a structure resistant to temperature changes in these sections. After the portioning in the kitchen meals are placed in the KIT. Then it is placed in a HOT & COLD Trolley with a transport cart. Hot & Cold cycle is processed until reaching the desired values at the patient floors and then serviced to the patients by Hot & Cold trolley. Used dirty tray collection can be done by hot & cold trolley or tray transport KIT can be used as an alternative (hygienic cover is recommended for a hygienic process for the transport KIT). Removable KIT provides the user additional convenience thus it is easy for the user to clean the inside of the trolley. KIT can be easliy washed because there are no electrical or electronic components on it.
Option 3- Tray Transport Kit Trolley
This trolley is used for transporting the TRAY TRANSPORT KIT where the trays are placed. With the lock system on the trolley the KIT can be fixed safely. Trolley provides the KIT convenience when placing and removing on a Hot & Cold Trolley in a correct way. There are no heat transitions around the KIT that are located correctly. Also to collect the used trays from the patient floors can be done by KITs and this trolley can be used in this purpose. Trolley is light weight and has an ergonomic design for the user needs. Users can easily move within the hospital.
